HDPE Spiral Tank Manufacturers In Punjab

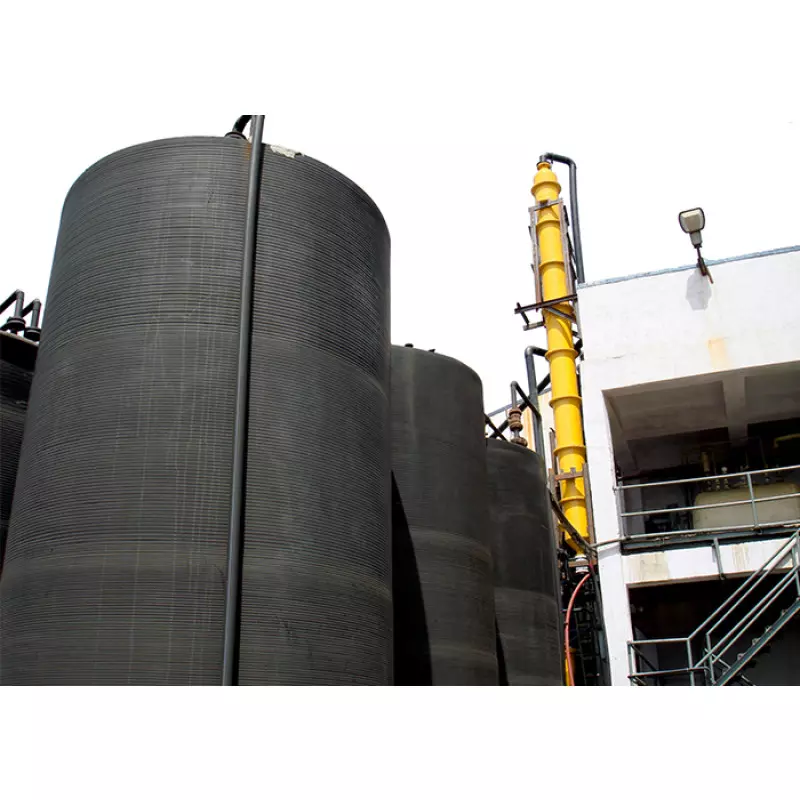

Spiral-Wound HDPE Tanks for Harsh Chemical Storage

We are supplying HDPE spiral tanks manufactured using high-density polyethylene for critical storage of corrosive liquids, acidic compounds, and high-purity chemicals. These units are formed using the spiral winding technique, offering seamless cylindrical walls with superior hoop strength. Widely accepted in India's industrial belts, they are used in both static and transport applications.

Domestic & International Applications

These products are used in industrial and domestic sectors such as:

1. India – Effluent holding, acid dosing, alkaline neutralization units
2. Africa – Agriculture fertilizer storage and chemical mixing vessels
3. Middle East – Water-based polymer tanks and wastewater conditioning systems
4. South Asia – Pharmaceutical intermediate storage
5. FMCG Plants – Food-grade fluid handling for CIP (Clean-In-Place) systems
6. Electroplating Zones – Acid rinse and metal dip tanks

Applications demand long-term chemical compatibility with minimum thermal deformation.

Trusted in Multiple Process Sectors

• Dye and pigment manufacturing requires sulphuric acid storage
• Battery industries use spiral tanks for electrolyte neutralization
• Pesticide and herbicide units storing raw solvent mixes
• Metal treatment plants using HCl and nitric acid holding tanks
• Wastewater treatment requiring caustic soda or lime slurry dosing
• Food production handling brine and preservation agents in lined versions

Each sector prefers spiral tanks due to high wall thickness uniformity and crack resistance.

Performance Structure

Manufactured using spiral-wound HDPE sheets over cylindrical dies, the tanks achieve seamless wall fusion with excellent tensile properties. Top dome lids, welded nozzles, anti-spill rims, and support skirts are provided as per usage. We, as a firm, offer base types including flat bottom, conical bottom, and support ring-based mounting. Chemical compatibility charts are shared based on the client's fluid.

Specifications

• Diameter Range: 500 mm to 3500 mm
• Storage Capacity: 500 Litres to 40,000 Litres
• Wall Thickness: 10 mm to 45 mm
• Material Grade: PE-100 / UV-Stabilized / FDA-Compliant (if required)
• Temperature Handling: Up to 75°C continuous
• Color Options: Black (standard), Natural White (food-grade), Blue (custom)
• Top Structure: Open, sealed, or vented with level indicator points

Tested for hydrostatic strength, UV resistance, and chemical compatibility before dispatch.

Supply Ready Across Indian Industrial Zones

We are supplying HDPE spiral tanks across India with skid-mounting, crane-lift rings, and project-specific flange placements. In addition to our commitment to quality and customer satisfaction, all tanks include lifting guides, drain plan sheets, and material test certificates. Custom branding and level-scale print can be added for OEM clients or EPC contractors.
